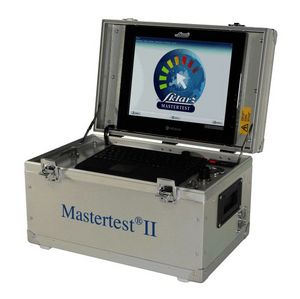

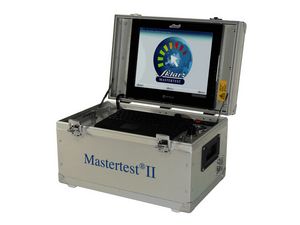

The professional testing equipment MASTERTEST® II - one for all!
For testing pipes, manholes, separators, pressure lines, pipe joints, lateral drains with air, vacuum, water or high-pressure according to all standards available. The current list of standards of MASTERTEST® can be checked here.
Compact test kit with integrated heavy-duty industrial PC and TFT display and incorporated pressure sensor for air and vacuum tests. Test section control and 1/2” piping allow for smooth testing operations even for larger pipe sizes. The connections are made directly to the case via a panel. The modular structure allows the kit to be extended whenever needed, e.g. for water testing, high-pressure testing...
The included test software makes work easy and professional, offering a detailed and conclusive documentation. Thanks to the multilingual software, the equipment can be used all over Europe.
There are specific sets available for different testing tasks such as a test set for separators or high-pressure tests.
• measuring instrument for air and vacuum
• measuring range –300 to +300 mbar
• ball valve for filling, testing and draining the pipe to be tested
• 1/2" piping in the kit
• connection panel with: air-in, test section, compressor, vent and external sensor ports
• built-in industrial computer and sunlight readable TFT display
• USB printer port
• pressure test software program with master data recording and test report print functions for Windows 7, 8 and 10
• test report can be exported as PDF file
• testing according to DIN EN 1610, DIN 1986-30, DWA M 149-6; other test methods are possible
• optional pipe plug control according to Order No. 11.050
• supply voltage: 230 VAC (110VAC)
Order No.: 11.000
- without PC and without TFT-display -
• same technical data as for Order No.: 11.000
• but without PC and without TFT display
• 19” rack (3HE)
• PC communication via serial interface RS 232
• optional pipe plug control according to Order No. 11.050
• external sensor port for optional extensions
• incl. SKLARZ pressure test software
• supply voltage: 230 VAC (110VAC)
Order No.: 11.001
- without PC and without TFT-display -
• same technical data as for Order No.: 11.000
• but without PC and without TFT display
• slim robust aluminium case with space for notebook
• notebook communication via serial interface RS 232
• optional pipe plug control according to Order No. 11.050
• external sensor port for optional extensions
• supply voltage: 230 VAC (110VAC)
• incl. SKLARZ pressure test software
Order No.: 11.002
- without PC and without TFT-display -
• same technical data as for Order No. 11.000
• internal pickup -300 to +300 mbar
• but without PC and without TFT display
• slim case with space for notebook
• notebook communication via serial interface RS 232
• no ball valve for filling the test section, pipe plug control option not possible
• external sensor port for optional extensions
• supply voltage: 230 VAC (110VAC)
• incl. SKLARZ pressure test software
Order No.: 11.003
also available as “Pressure test kit – external sensor design” (without internal pickup)
Order No.: 11.006
with PC and TFT display
With LGA Test Certificate No. BMV 57215318-01 according to DIN 1999-100 and DIN 4040-100 (Accuracy Class 0,1)
consists of:
Pressure test kit for separator testing and pressure testing according to DIN 1999/100, DIN 4040-100, EN 1610, etc.
- case with built-in industrial PC and sunlight readable TFT display,printer port
- TFT display with shockproof screen
- all 1/2" piping in the kit – for faster filling of test section
- software with integrated test standard acc. to DIN 1999 100, and DIN 4040-100
- test report printout for Windows 7, 8 and 10
- connection panel with air-in, test section, vent ports
- air pressure tests acc. to DIN EN 1610, DWA-M 149-6, DIN 1986-30, other test methods are possible
- manhole tester with tripod
- optional pipe plug control according to Order No. 11.050
Order No.: 11.200
- in addition with integrated multiprobe test
Order No.: 11.201
without PC and TFT display
With LGA Test Certificate No. BMV 57215318-01 according to DIN 1999-100 and DIN 4040-100 (Accuracy Class 0,1)
consists of:
- slim case with space for notebook
- further equipment same as Order No. 11.200, but without PC and without TFT display
Order No.: 11.202
- in addition with integrated multiprobe test
Order No.: 11.203
High-Pressure Test Kit EN 805
- stable aluminium case with industrial PC and TFT display
* TFT with protective screen – sunlight readable
* USB port - external Measuring Box with water meter and solenoid valves
* Ports for pressure & temperature sensors
* incl. 0 – 20 bar pressure Sensor (other measuring ranges available) - incl. SKLARZ Pressure Test Software for EN 805,
* with master data recording and test report print functions for Windows 7, 8 and 10
* all test methods integrated – pressure loss, water loss, contraction
* input & storage of test-relevant data such as pipe length, pipe material, inner diameter, compression module, module of elasticity (via pick lists)
* input of laterals of different pipe materials is possible
* temperature recorded during test run (measuring range: -20°C to + 60°C, Resolution 0.1 ° C) - fully automatic test run all phases
* pressure removal, filling, holding, rest, pressure drop, testing, discharge - water meter measuring water addition in line with integrated pressure drop test (measuring range: 7,5l/min., Resolution 10 ml - further counters on request)
- test report with time/pressure diagram
- all single test data on additional page,
- printout as PDF
- test kit can be extended at any time by:
* air/water pipe test, manhole test, separator test, pipe joint test
(to EN 1610, DIN 1986-30, DWA-M 149-6 etc.)
* further counters on request
Order No.: 14.000
• is used for presetting the inflation pressure specified by the plug manufacturer
• pressure gauge
• inflation and deflation via Pipe Plug ON/OFF switch
Order No.: 11.050

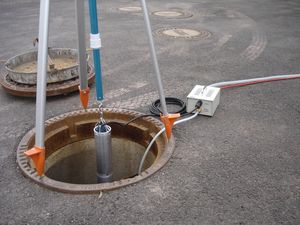

• tripod with hose and water tank for 5m WG
• high-precision sensor with a resolution of 0.1 mbar = 1 mm
• in case of leakage = level drop shown on the display; graduated beaker for topping up water
• pressure pickup directly on the plug
Order No.: 11.017
• robust carry case for manhole-to-manhole pipe run testing (Order No.: 11.018)
• high-precision sensor with a resolution of 0.01 mbar = 0,1 mm
• in case of leakage = level drop shown on the display; graduated beaker for topping up water
• make-up water amount to be entered at end of test
Order No.: 11.015
Important: multiprobe test possible – see Order No. 11.206, 11.027 and 11.208
• robust carry case form manhole testing (Order No.: 11.018)

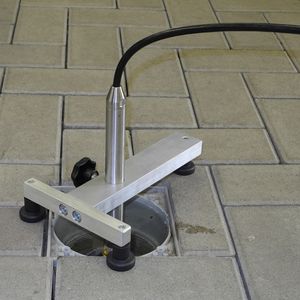

• for measuring water loss in invert channels or low water levels
• high-precision sensor with a resolution of 0.1 mbar = 1 mm
Order No.: 11.016
• robust carry case for Invert Channel Test Unit (Order No.: 11.018)
- for manholes DN 600/625 (other sizes available on request)
- 2 models:
* test lid with special sealing tape
* inflatable manhole plug
Order No.: 11.030 (test lid)
Order No.: 31.135 (manhole Plug)
• 0-20 bar pressure sensor
• can be used in connection with the pressure testing equipment
• is only used to transfer data for test reporting
• controlled by hand
• other pressure ranges available on request (transmitters up to 400 bar)
Note: High-pressure testing acc. to EN805 see Options-Automatic
Order No.: 14.114

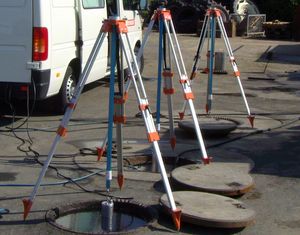

- for testing several separators/manholes/pipes (up to 4 objects) at a time, using one pressure tester
- master data input by test job using the same software
Order No.: 11.206 separator/manhole/pipe test - second sensor
Order No.: 11.207 separator/manhole/pipe test - second and third sensors
Order No.: 11.208 separator/manhole/pipe test - second, third and fourth sensor
Order No.: 15.040 software extension for multisensor equipment
consists of:
- GPS antenna with integrated GPS 12-channel receiver
- software for selection of navigation data and for transmission to the Sklarz pressure test software
- GPS accuracy: 1-3 m – if local reception conditions are optimal
Order No.: 11.085

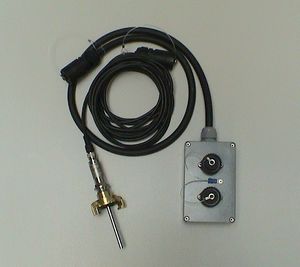

consists of:
• temperature sensor –20°C to +60°C with Geka-type coupling for quick connection to test plug
• box for connection to external sensor port – allowing simultaneous operation of external sensor and temperature sensor
• software for reading the temperature data
• graphic output of temperature curve
Order No.: 11.081
• for determining any change in atmospheric pressure during the test
• pressure sensor 0 to 1200 mbar, absolute pressure
• automatic integration of the pressure value into the test software (initial & final pressures) and into the test report
Order No.: 11.913

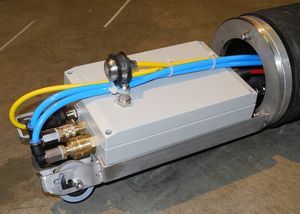

- preparation for automatic air/vacuum, water and high-pressure test modules
- at any time retrofittable to the pressure test kit, 19" pressure tester and test set for separators
Order No.: 11.020
- automatic filling, monitoring, testing and emptying of the test chamber
- integrated pipe plug control with plug pressure selection via the pressure test software
- compressor control with air/vacuum changeover
- integrated in the test kit / test unit
Order No.: 11.021
- automatic run of manhole test
- automatic measuring & make-up of water loss
- water loss measured via the pressure tester with an accuracy of 10 millilitres
- test pressure resolution: 0.01 mbar = 0.1 mm drop of water head
- test equipment built in the robust case
Note: prepared for the "Automatic Water Test Module – Pipe" and "Automatic High-Pressure Test Module EN805
Order No.: 11.022

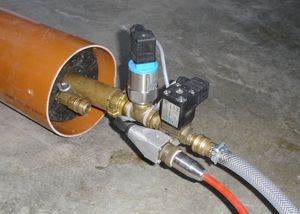

- automatic pressure build-up and check of the test chamber
- direct measurement of test level on the test chamber, so the position of the test device is of no importance (pipe depth)
- automatic measuring & make-up of water loss
- water loss measured via the pressure tester with an accuracy of 10 millilitres
- test pressure resolution: 0.01 mbar = 1mm drop of water head
- test equipment built in the robust case
Note: prepared for the "Automatic Water Test Module – Manhole" and "Automatic High-Pressure Test Module EN805
Best.Nr.: 11.023
- automatic test run including pressure build-up & maintenance, controlled pressure reduction and main test
- all test methods integrated – pressure loss, water loss, contraction
- water discharge measured by the integrated water meter during the integrated pressure drop test
- online temperature measurement during the entire test run
- integrated calculation of test data using the E-modulus of the pipe material and the compression data of the water
- generation of a time-pressure-temperature chart (report)
- test equipment built in the robust case
Note: prepared for the "Automatic Water Test Module – Pipe Test" and "Automatic Water Test Module – Manhole Test"
Order No.: 11.025
- stable aluminium case with industrial PC and TFT display
- TFT with protective screen – sunlight readable
- USB port
- external Measuring Box with water meter and solenoid valves
- Ports for pressure & temperature sensors
- incl. 0 – 20 bar pressure Sensor (other measuring ranges available)
- incl. SKLARZ Pressure Test Software for EN 805,
- with master data recording and test report print functions for Windows 7, 8 and 10
- all test methods integrated – pressure loss, water loss, contraction
- input & storage of test-relevant data such as pipe length, pipe material, inner diameter, compression module, module of elasticity (via pick lists)
- input of laterals of different pipe materials is possible
- temperature recorded during test run (measuring range: -20°C to + 60°C, Resolution 0.1 ° C)
- fully automatic test run all phase
- pressure removal, filling, holding, rest, pressure drop, testing, discharge
- water meter measuring water addition in line with integrated pressure drop test (measuring range: 7,5l/min., Resolution 10 ml - further counters on request)
- test report with time/pressure diagram
- all single test data on additional page,
- printout as PDF
- test kit can be extended at any time by:
- air/water pipe test, manhole test, separator test, pipe joint test (to EN 1610, DIN 1986-30, DWA-M 149-6 etc.)
- further counters on request
Order No.: 14.000
- automatic test run including pressure build-up & maintenance, controlled pressure reduction and main test
- all test methods integrated – pressure loss, water loss, contraction
- water discharge measured by the integrated water meter during the integrated pressure drop test
- online temperature measurement during the entire test run
- integrated calculation of test data using the E-modulus of the pipe material and the compression data of the water
- generation of a time-pressure-temperature chart (report)
- test equipment built in the robust case
Note: prepared for the "Automatic Water Test Module - Pipe Test" and „Automatic Water Test Module - Manhole Test“ und „Automatikmodul Wasser – Schacht“
Order No.: 11.025
- pump set with electric motor
- pressure regulating valve with pressure gauge
- water tank 100 l with attachment (larger on request)
- with hoses and fittings
- Conveniently installed in the vehicle / trailer or on a VA frame
variant 27 Litre Order No.: 14.050
- delivery rate: 27 Litres at max. 40 bar
- incl. frequency converter for soft start
- incl. electrical installation with switch and control for pump start at zero pressure
- power consumption 3 KW
- power supply: 240 VAC
variant 11 Litre Order No.: 14.052
- • delivery rate: 11 Litres at max. 40 bar
• incl. electrical installation with switch and control for pump start at zero pressure
• power consumption 1,6 KW
• power supply: 240 VAC
• complete unit with water tank mounted on base frame
- with video signal transmission -
- reel drum with 100-metre-long wear-resistant pneumatic hose
- control cable with integrated pneumatic hose for instrumentation control in one of the two SKLARZ pipe joint test plugs and for transmission of the video signal for the monitoring camera
- drum body with scratch-proof coating
- fully encapsulated, hard gold-plated slip rings for smooth and maintenance-free operation
- rotary joint for compressed air
- specific distributors for compressed-air/electricity junction or split
- connectible via waterproof MIL connectors
- stainless steel rack
- electric motor with freewheel
- variable speed control
- reversing spindle for uniform winding-up of the hose
- mechanical length counter
- drum dimensions: approx. W=780 x D=840 x H=750 mm
- weight: 92 kg
Order No.: 13.006
Pulse generator for length counter
- electric pulse generator for mechanical length counter
- digital display integrated in remote control unit
Order No.: 13.007

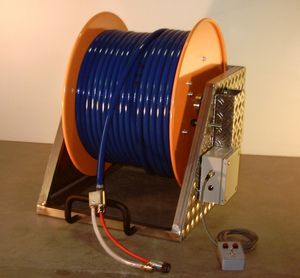

- with video signal transmission -
- reel drum with 100-metre wear-resistant pneumatic hose
- control cable with integrated pneumatic hose for instrumentation control in one of the two SKLARZ pipe joint test plugs and for transmission of the video signal for the monitoring camera
- drum body with scratch-proof coating and latch
- fully encapsulated, hard gold-plated slip rings for smooth and maintenance-free operation
- connectible via waterproof MIL connectors
- rotary joint for compressed air
- specific distributors for compressed-air/electricity junction or split
- incl. remote control for inflation and test section control
- remote control functions:
- plug “on/off”
- test section “on/off”
- weight: approx. 52 kg
Order No.: 13.005
- with carriage control
- pull or push carriage for single-size joint test devices (SK system)
- rigid connection between carriage and test device
- 4 driven wheels
- application range starting with DN 225 (minimum diam. 200mm),
- can be extended by larger extra wheels or corundum wheels
- connects to the SKLARZ pipe joint test drum Order No. 13.006
- therefore only one hose with cable to the carriage; can be easily extended with the SKLARZ lateral pipe test Order No. 13.119
- heavy-duty chassis in brass design
- length: 640 mm, width: 120 mm, height: 105 mm
- weight: approx. 30 kg
Order No.: 13.092
- in conjunction with joint test drum
Order No.: 13.006 o. 13.005
- DN 200 Order No. 13.032
- DN 250 Order No. 13.033
- DN 300 Order No. 13.034
- DN 400 Order No. 13.035
- DN 500 Order No. 13.036
- DN 600 Order No. 13.037
- DN 600 - 800 Order No. 13.038
- prewired for installation of SKLARZ test & control module Order No. 13.090
- axial camera probe can be used for positioning
- test section is adjustable in two length
- also usable as single shut-off discs
- available as complete test set SK 200 – 600 (Order No. 13.032 – 13.037)
incl. test & control module
Order No.: 13.044
Single-size joint testers for high-rate sewer systems PVC SN10 and PP SN10 available on request.
• for single-size pipe joint testers – SK system
• wheelset with a set of connection bars and rings
• set of connection bars
DN 300mm in length 500mm in length
200/250 13.131 -
300 13.132 13.134
400-600/800 13.133 13.135
• set of connection rings DN 250 Order No.: 13.141
• set of connection rings DN 300 Order No.: 13.142
• set of connection rings DN 400 Order No.: 13.143
• set of connection rings DN 500 Order No.: 13.144
• set of connection rings DN 600/800
Order No.: 13.145
• in conjunction with joint test drum Order No. 13.006 o. 13.005
• for air and water test
• DN 200-250 Order No. 13.181
• DN 300-350 Order No. 13.182
• DN 400-500 Order No. 13.183
• DN 600-700 Order No. 13.184
• Axial camera probe can be used for positioning
• complete with wheel sets
- joint test devices - AIR -
• can be used for SK and SKRS joint test devices and for almost all commercially available push-in pipe joint testers of all diameters
• quick installation in a tester
• test and measurements directly at the pipe plug
• therefore quick filling of pipe plug and test section
• short test periods
• inflation of pipe plugs and filling of test section via remote control
• in conjunction with SKLARZ pipe joint test drum Order No. 13.005 or 13.006
• video signal transmission via control cable of joint test drum (only for Order No. 13.005 or 13.006)
Order No.: 13.090

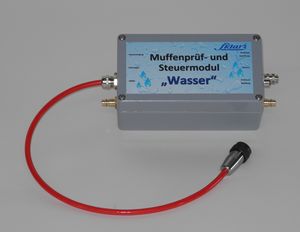

- joint test devices - WATER -
• appropriate for SKRS joint test devices and for almost all commercially available push-in pipe joint testers of all diameters
• quick installation in a tester
• test and measurements directly at the pipe plug
• includes a water meter for measuring the water amount
• therefore quick filling of pipe plug and test section
• short test periods
• inflation of pipe plugs and filling of test section via remote control
• in conjunction with SKLARZ pipe joint test drum Order No.: 13.005 or 13.006
• video signal transmission via control cable of joint test drum (only for Order No. 13.005 or 13.006)
Order No.: 13.180
• 36 mm diameter
• high-contrast cold-light LED illumination
• wide-angle objective F1:2/2.5mm, horizontal 80° view angle
• lens protected by quartz glass
• high-resolution 1/4" CCD imager
• can withstand pressures of up to 1bar
• to be fixed to the SKLARZ test & control module Order No: 13.090
• transmission of video signal via control cable of joint test drum (only for Order No. 13.005 or 13.006)
Order No.: 13.070
• pipe joint image capture via a digitizer card and visualisation on the TFT screen of the SKLARZ pressure test kit
• basic conditions:
- Sklarz industrial PC with vacant PCI slot or USB port
- pipe joint test drum with video signal transmission
- camera adjustment for pipe joint tester
Order No.: 13.076
• suitable for SK (single-diameter) and SKRS systems pipe joint test packers
• cable penetration through a packer
• camera voltage & lighting control
• connection for camera probe
• if further packers (multi-size design) are to be equipped with a camera connection, Order No. 13.075 is required
Order No.: 13.074
• based on single-size testers –SK system
connecting half-shell Order No. 13.121 – 13.125 required
• basic unit with manual remote control unit
• size range:
* Main line – diameters DN 250 - 800
* Lateral pipe – diameters DN 100 - 150
• positioning unit: Swivel approx. 180°, tilt approx. 45°
• robust drive wheels transport the air hose with integrated camera cable and connectible lateral pipe sealing plug into the lateral connection pipe
• includes a length counter
• lateral plug with axial camera – available with a self-levelling camera at a higher price
• standard design: push-in length into lateral pipe 1500 mm; lengths up to approx. 20 m available on request
• all functions of the lateral pipe tester are operated via a remote control unit (processor controlled)
• prewired for the installation of a SKLARZ Test & control module Order No.: 13.090
• axial probe for positioning can be used
• complete with wheelsets
Order No.: 13.119

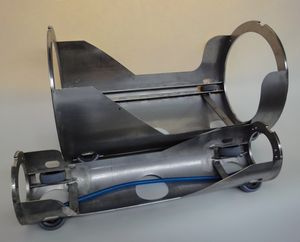

Note: only in conjunction with the carriage Order No.: 13.092
• is required for installing the lateral pipe test module
• DN 250 Oder No.: 13.121
• DN 300 Oder No.: 13.122
• DN 400 Oder No.: 13.123
• DN 500 Oder No.: 13.124
• DN 600 Oder No.: 13.125
• 49 m3/h at 600 mbar
• oil lubricated, with oil/water separator
• rotary compressor with motor on base plate installed on anti-vibration mountings
• for high air output in filling the test section
• for air and vacuum tests
• mounted on base frame
• weight 82 kg
• dimensions: L=700 x B=700 x H=760 mm
with electric motor
Order No.: 11.038
4kW Honda engine with battery starter
Order No.: 11.040
• tank volume: 24 litres, maximum pressure: 10 bar
• intake 200 litres, delivery 145 litres
• 230V/50Hz, 1.1kW
• low starting current
• pressure reducer and pressure gauge
Order No.: 63.000
Other models available on request!
• for producing a vacuum from compressed air
• maximum 500 L/min (depends on compressor capacity)
• maximum vacuum: 800mbar
• maximum inlet pressure: 11 bar
• with connection hose
Order No.: 11.035
- pumping set with electric motor
- delivery pressure is continuously adjustable
- 100 Litre water tank (larger on request)
- with hoses, valves and fittings
- properly installed in vehicle/trailer or on stainless steel frame
27 Litre variant Order No. 14.052
- delivery rate: 27 Litres at max. 40 bar
- incl. frequency converter for soft start
- incl. electrical installation with switch and control for pump start at zero pressure
- power consumption 3 KW
- power supply: 240 V, 50 Hz
11 Litre variant Order No. 14.052
- delivery rate: 11 Litres at max. 40 bar
- incl. electrical installation with switch and control for pump start at zero pressure
- power consumption 1,6 KW, power supply: 240 V, 50 Hz
- complete unit with water tank mounted on base frame

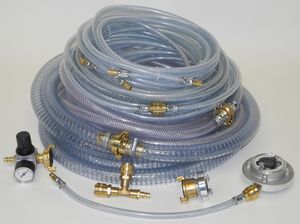

• 1/2" filling hose, 10 m long with connectors
• 3 air hoses with connectors
• 1 Y-junction
• 1 Geka/Storz adapter
• 1 Geka/air pressure reducer
Order No.: 11.041
• available in various lengths
• PUR-jacketed cable
• integral robust connector system
• cable reel drum with or without slip rings
Extension cable 10m Order No.: 11.161
Extension cable 20m Order No.: 11.162
Cable reel drum 50m (w/o slip rings) Order No.: 11.167
Cable reel drum 50m (with slip rings) Order No.: 11.165
• replaces the extension cable or the cable reel drum
• wireless transmission in the interference-immune 433MHz network
• reach of up to 1000 m (depends on local environment)
• several radio systems can be operated in parallel
• composed of transmitter and receiver
Order No.: 11.175
Lateral Test Unit - II - "SKLARZ"
DN 75 to DN 150 – for air and water testing
1 x test plug DN 75-15, 1 x pipe plug DN 75-150,
1 x pipe plug DN 65-150, accessories
Order No.: 11.053
Lateral Test Unit - III - "SKLARZ"
DN 75 to DN 250 – for air and water testing
1 x test plug DN 75-150, 1 x pipe plug 90-250
1 x pipe plug DN 75-150, 1 x pipe plug DN 90-250, accessories
Order No.: 11.054
